Energiespeicher FOXTHEON EP 66/66
|
PERFORMANCE |
||
|
Nominal rated power |
kVA |
66,5 |
|
Overload power(60s) |
kVA |
83 |
|
Nominal peak power(10s) |
kVA |
188 |
Ā
|
ELECTRICAL |
||
|
Input voltage range |
VAC |
400 |
|
Output voltage range |
VAC |
400 |
|
Frequency |
Hz |
50(60) |
|
Power factor range |
Ā |
0 ind. ...1... 0 cap |
|
Maximum AC current |
A |
271 |
Ā
|
ENERGY |
||
|
Cell chemistry |
Ā |
LiFePO4ļ¼Lithium Iron Phosphateļ¼ |
|
Nominal capacity |
kWh |
68 |
|
Eļ¬ective capacity |
kWh |
61,2 |
|
Recharging time |
Hours |
2h@33kW |
|
Discharging time |
Hours |
1h@60kW |
|
System round trip eļ¬ciency |
% |
up to 96% |
|
DoD% (depth of discharge) |
% |
90 |
|
Lifetime (80% DoD) |
Cycles |
7000 |
|
Battery management system |
Ā |
Automotive grade BMS |
|
Maintenance charge cycle |
Ā |
ā¤ 36 weeks |
|
Temperature control |
Ā |
Liquid cooling / PI heating ļ¬lm |
Ā
| ENVIRONMENTAL | Ā | Ā |
|
Protection class |
Ā |
IP54 |
|
Corrosion protection |
Ā |
C3 (C5M) |
|
Operating temperature |
ā |
-20 to +50 |
|
Humidity |
Ā |
0-95%ļ¼no condensationļ¼ |
|
Maximum operating altitude |
m |
3000 |
|
Sound power level |
dB(A) @1m |
<50 |
Ā
|
MECHANICAL |
||
|

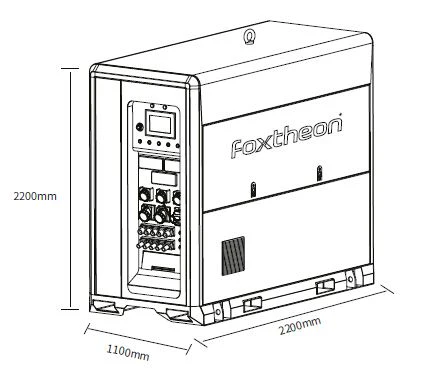

Dimensions (L x W x H) |
mm |
2200x 1100 x 2200 |
|
Weight |
kg |
1600 |
Ā
|
CONTROL |
|
|
Control panel |
Industrial grade rugged 10ātouch screen HMI with conļ¬gurable presets, data visualisation and logs |
|
Protection |
Overload, Overheat, Short Circuit, Earth Fault |
|
Temperature control |
Active forced air cooling |
|
Remote generator start |
Dry contact relay / MODBUS |
|
Remote connectivity |
Data-eļ¬cient M2M communications via cellular IoT and user notiļ¬cations to Internet connected devices |
|
Remote automation |
FoxCloud Web APP |
Original: $67,048.24
-70%$67,048.24
$20,114.47Produktinformationen
