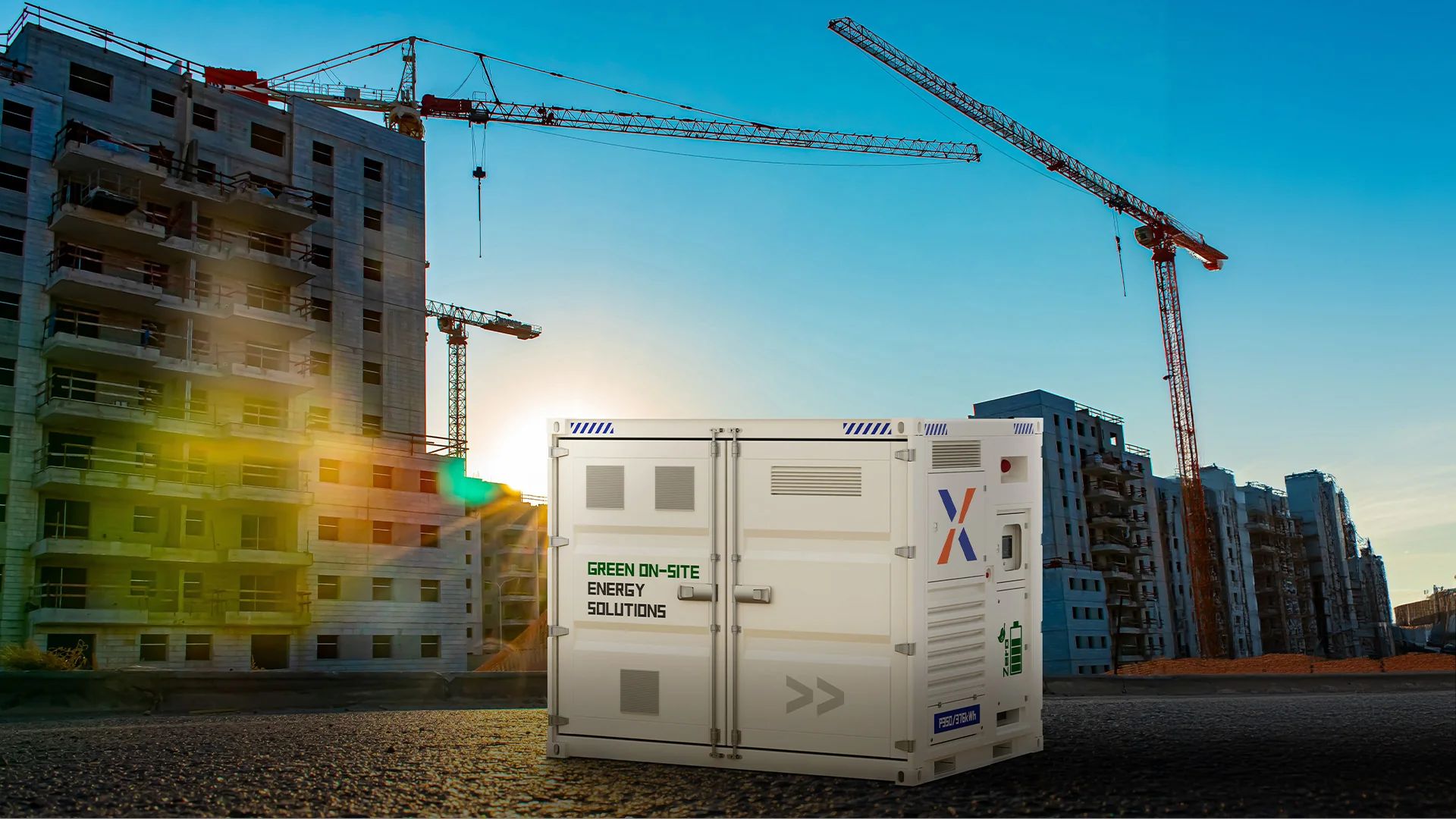

Energiespeicher FOXTHEON P350
|
PERFORMANCE |
||
|
Nominal rated power |
kVA |
376 |
|
Overload power(60s) |
kVA |
470 |
|
Nominal peak power(10s) |
kVA |
625 |
|
ELECTRICAL |
||
|
Input voltage range |
VAC |
400 |
|
Output voltage range |
VAC |
400 (-10%~+15% ) |
|
Frequency |
Hz |
50 (60) |
|
Power factor range |
|
0 ind. ...1... 0 cap |
|
Maximum AC current |
A |
902 |
|
ENERGY |
||
|
Cell chemistry |
|
LiFePO4（Lithium Iron Phosphate） |
|
Nominal capacity |
kWh |
376 |
|
Effective capacity |
kWh |
338,4 |
|
Recharging time |
Hours |
2h@188kW |
|
Discharging time |
Hours |
1h@338kW |
|
System round trip efficiency |
% |
up to 96,6% |
|
DoD% (depth of discharge) |
% |
90 |
|
Lifetime (80% DoD) |
Cycles |
7000 |
|
Battery management system |
|
Automotive grade BMS |
|
Maintenance charge cycle |
|
≤ 36 weeks |
|
Temperature control |
|
Liquid cooling / PI heating film |
| ENVIRONMENTAL | ||
|
Protection class |
|
IP54 |
|
Corrosion protection |
|
C3 (C5M) |
|
Operating temperature |
℃ |
-20 to +50 |
|
Humidity |
|
0-95%（no condensation） |
|
Maximum operating altitude |
m |
3000 |
|
Sound power level |
dB(A) @1m |
<50 |
|
MECHANICAL |
||
|

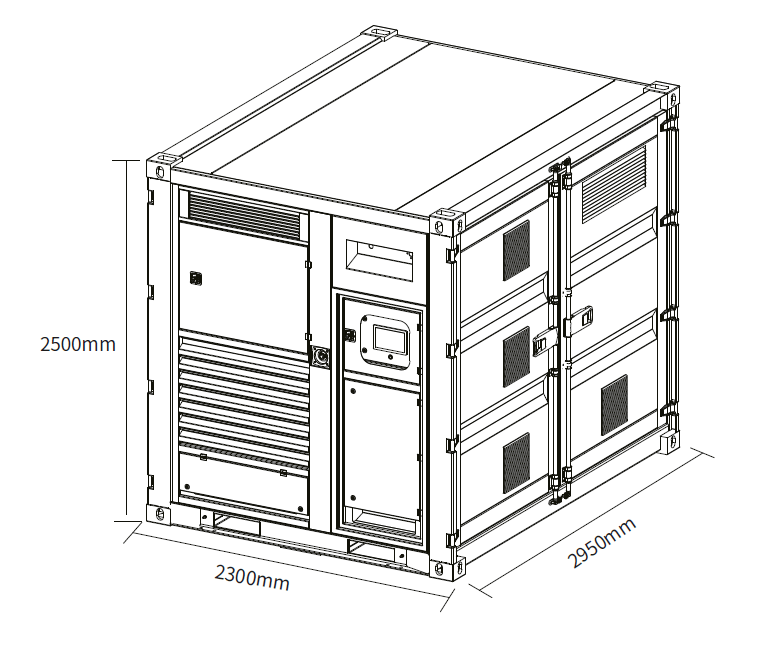

Dimensions (L x W x H) |
mm |
2950 x 2300 x 2500 |
|
Weight |
kg |
7500 |
|
CONTROL |
|
|

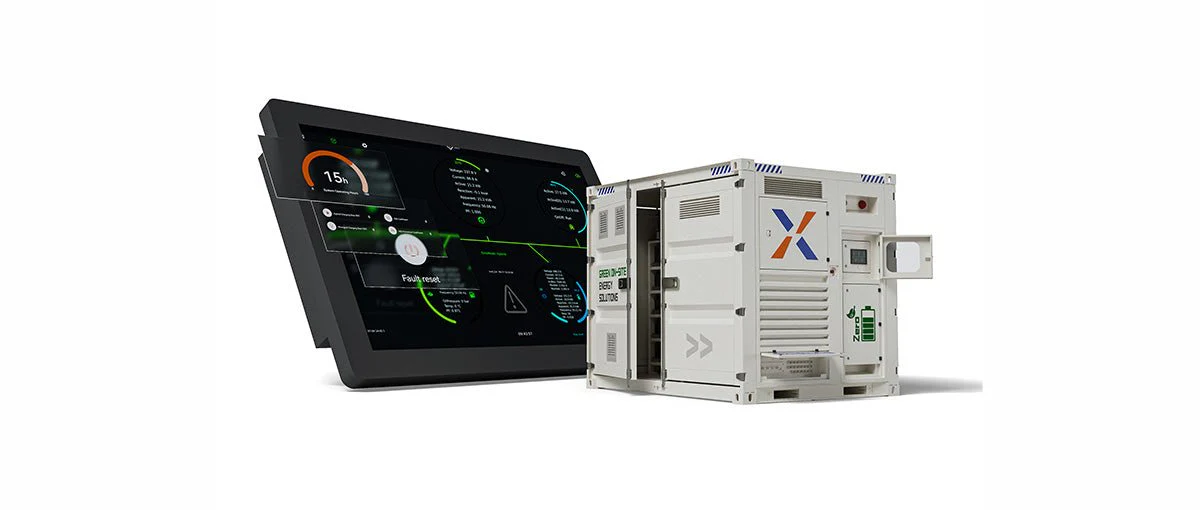

Control panel |
Industrial grade rugged 10”touch screen HMI with configurable presets, data visualisation and logs |
|
Protection |
Overload, Overheat, Short Circuit, Earth Fault |
|
Temperature control |
Active forced air cooling |
|
Remote generator start |
Dry contact relay / MODBUS |
|
Remote connectivity |
Data-efficient M2M communications via cellular IoT and user notifications to Internet connected devices |
|
Remote automation |
FoxCloud Web APP |
